Common name: Mediterranean pine shoot beetle
Scientific name: Tomicus destruens
Order: Coleoptera
Affects: Pine forests of Pinus pinaster, P. halepensis, P. radiata and P. pinea
Main season: Autumn, Winter and Spring
The Tomicus genus consists of seven species of coleopterans from the subfamily Scolytinae (Curculionidae) that cause damage to species from the Pinus, Abies, Larix and Picea genera. They are distributed throughout much of the Palearctic region, having been introduced into North America in the 1990s.
Tomicus destruens is considered to be a primary or aggressive species, that is widely distributed in forests. This species attacks P. halepensis, P. pinaster, P. pinea and sometimes P. nigra.

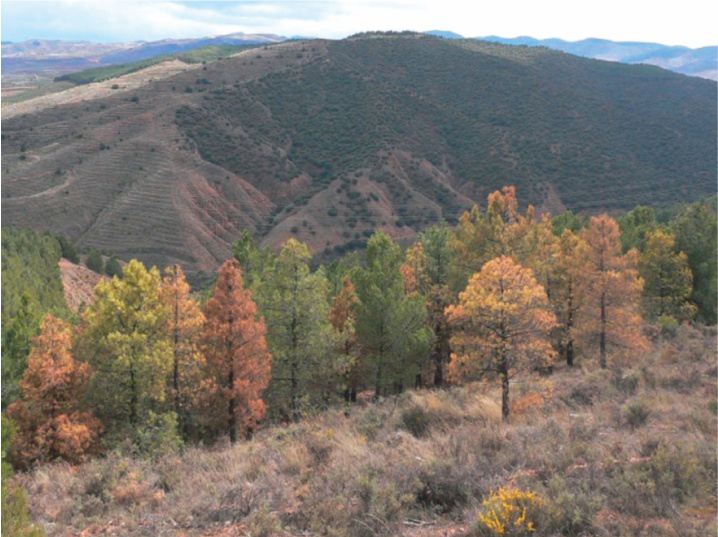

Pinus halepensis affected by Tomicus destruens
T. destruens measures 3,5 - 4,5 mm long and has a black head and thorax. The elytrons are brown, just like the legs. Oviposition takes place in the maternal galleries, in incisions made by the female on both sides of the gallery. The eggs are white and approximately 0.5 mm in diameter.
Physical appearance of Tomicus destruens
© Diego Gallego Cambronero
The number of eggs laid by the females can vary between 60 and more than 200. The larva is apodous and curved. It is also white with a brown head. When the larvae hatch, they barely reach 1 mm in length, but in the 4th and final larval stage their length is equal to or slightly greater than that of the imagoes.
The pupa grows at the end of the larval galleries, inside the pupal chamber. They are found on the bark or between the bark and the wood. These pupae are whitish and already show the visible appendages of the imago.
T. destruens has two clearly different stages in its life: the first stage is under the bark of weak trees,where copulation, egg laying and development of the new generation take place. The second stage is in the branches of the crowns of healty pine trees , where the imagoes feed.
T. destruens begins to fly from mid-September until the maximum temperature is below 20 °C, which may also occur during short periods of time from December to February when it can fly. Between October and December, they lay the eggs of the first generation which will emerge in March.
When the maximum temperatures in February or March rise above 20°C again, reproductive flight also begins anew, producing the second generation of eggs being laid. This generation will then emerge in May or at the very latest, early June. Both generations are siblings because they come from the same parental generation.
Reproduction begins after finding a host tree through sense of smell (at long distance) and sight (at short distance). Once located, the females begin to bore a hole in the tree trunks and thick branches. Each male enters after each female and following copulation, stays behind the female getting rid of sawdust whilst she excavates the vertical and uniramous gallery. The female lays each egg individually, in small incisions on either side of the gallery and then blocks the hole to stop predators from getting to the eggs.
A pair of Tomicus destruens inside a subcortical gallery
© Diego Gallego Cambronero
A few days later the larvae are born and start to perforate galleries that are perpendicular to the maternal galleries, filling them with sawdust and excrements as they pass by to stop predators from entering. The larva goes through four stages, later changing into a pupa inside a small chamber underneath the tree bark, which can leave a mark in the wood. The dyspigmented preimagoes, remain for some time in the chamber, to later go outside through a hole that they perforate in the bark.
Small branches perforated by Tomicus destruens and blown down by the wind
After that, they fly to the crowns of the trees and insert themselves into the pith of dying branches, to feed on them and mature sexually. The imagoes remain in the tree crowns throughout summer, moving from one branch to another. The tips of the branches are very often severed, falling to the ground. The parent generation also needs to spend some time feeding on branches between the egg laying in Autumn and again in Spring.
The Tomicus produces two types of damage: in the subcortical galleries of the tree trunks and thick branches; and galleries in the branches of the crowns. Attack on the tree crowns is irrelevant, given that the trees they attack have enough vigour to regenerate the losses. On the other hand, attacks on the tree trunk are always fatal, because fungi are introduced through the maternal galleries and especially the larval galleries, causing degradation of the phloem surrounding the gallery. In addition, whilst the larvae feed, a mechanical destruction of the phloemic channels is produced.
They select trees or parts of the trunk, with bark that is not too thin or too thick. They do not tend to attack in replanted areas. The attacked trees are easily recognisable because of the volcanoes of yellow resin that surround the entrance holes. Sometimes trees can be found with rejected attacks, alive, but with volcanoes of resin.
Galleries and volcanoes of resin
© Diego Gallego Cambronero
They prefer to reproduce in trees that are in the early stages of deterioration, mainly due to lack of water, competition with other trees, damage by fire or mechanical damage. They behave like primary or aggressive species, capable of killing quite strong trees and do not usually attack previously attacked trees by other bark beetles (except for very rare cases, such as Pinus pinaster being attacked by Ips sexdentatus).
In the absence of occasional damage, such as fires or drought, the trees at most risk of attack are those that are found in poor, not very deep soil with hardly any rain and too many trees per hectare. Frequent attacks on very old trees (>80 years old) have also been detected, it is possibly linked to the trees aging. Another risk factor is the forest work involved in clearing and extracting trees. In some cases, attacks have been registered in healthy trees.
Particular attention must be paid to the periods of intense and prolonged drought, as they influence in Tomicus destruens not only attacking individual trees, but also large masses of forest. Between 1994 and 1996, nearly 40,000 hectares of pine forest were affected after a prolonged drought in the Region of Murcia.
Abandoned wood from forest work is the perfect material for Tomicus destruens to reproduce on, and once the population density has reached high levels, this species could become a real threat for other trees and forests. With regard to the pest situation, at first the dead trees appear to be alone or in small circular areas. The population of the insect grows rapidly and the outbreaks change into continuous patches, which are more extensive every time.
Visual diagnosis is based on the presence of volcanoes of yellow resin on the tree trunks and thick branches. Normally this symptom is detected after the crown suddenly turns yellow. By removing the bark, the presence of the species is confirmed. This discolouration is produced in advanced stages of infestation, when the parent and part of the offspring generation have abandoned the host.
This makes controlling the pest all the more difficult. By working solely on the part of the offspring population and practically nothing on the parental generation, the treatments for cutting down and debarking a tree are only partly effective. In very weak or cut down trees no volcanoes of resin form, so diagnosis can only be carried out by removing the bark on the trees and identifying the galleries.
There are two types of damage, with different methods of management.
EXTENSIVE DAMAGE, in forest areas. The following levels of damage have been suggested:
Grade 0: Stand with some dead trees, possibility of rejected attacks.
Grade 1: Stand with dispersed dead trees.
Grade 2: Stand with dead trees and some small dispersed circular areas.
Grade 3: Stand with clear evidence of large or many small circular areas tending to mass mortality.
Grade 4: Mass mortality.
LOCALISED DAMAGE in public areas, such as parks and gardens.
Grade 0: Some dead trees and rejected attacks on others.
Grade 1: Death of less than half of the trees.

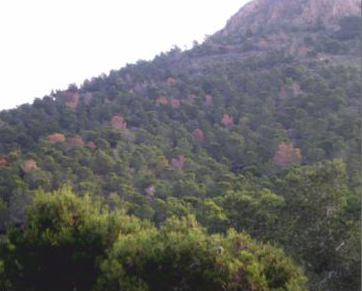

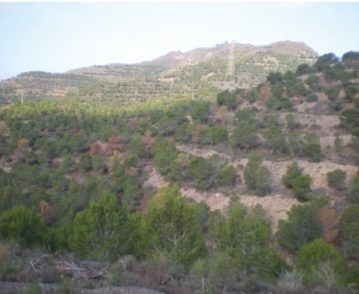

Extended damage: Grade 1

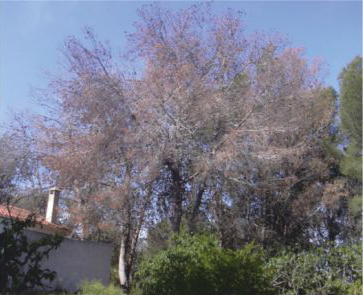

Localised damage: Grade 2
Localised damage: Grade 2
Localised damage: Grade 2
In forests, 1 CROSSTRAP® MINI should be placed every 20 hectares and separated at least 1000 m from each other. For surfaces that are less than 20 hectares, at least one trap should be placed per stand or forest. The traps should be placed in areas with good visibility, such as forest borders, forest trails or firebreaks. Windy areas should be avoided, as the wind makes it more difficult for the insects to fly and could damage the traps. Detection traps should cover the environmental variability of the monitored forest.
As a rule, the traps should be placed and active between mid-September and mid-April. These periods could be shorter for the years that have a very warm early autumn and early spring.

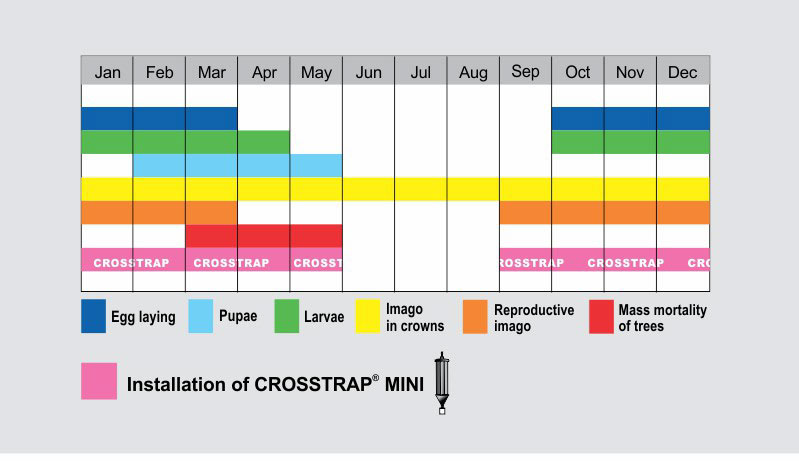

Phenology of Tomicus destruens
For monitoring, wet captures are recommended as they allow for the precise identification of the captured insects. For this purpose, fill the collection cups with 10 ml of diluted propylene glycol (10 or 20%), or where appropriate, vehicle antifreeze may be used. This liquid is used for killing the captured insects, as well as preserving them, as long as it does not dissolve too much with the rainwater, in which case it should be replaced. It is recommended to collect the captures at least every 15 days.
Example of trap installation for the DETECTION AND MONITORING of Tomicus destruens, in a forest area of 1500 hectares, with 35 traps installed along forest trails and firebreaks and with a distance between traps of 1000 m.
In forests
To intensify monitoring, traps should be placed at a distance of 100 and 500 metres between each other, following forest trails, firebreaks and forest borders.
The density of traps can vary between 0,3 and 3 CROSSTRAP® MINI traps per hectare. They can also be installed inside forests, as long as they are not too dense. For exhaustive monitoring dry captures are recommended, using the collection cup with a stainless steel mesh base and a slippery product. This collection cup stops the bark beetles from escaping, as they cannot climb out due to the slippery product. Although, it allows the entrance and exit of the predator Thanasimus formicarius, who devours the captured insects. This minimises the impact of trapping useful fauna.

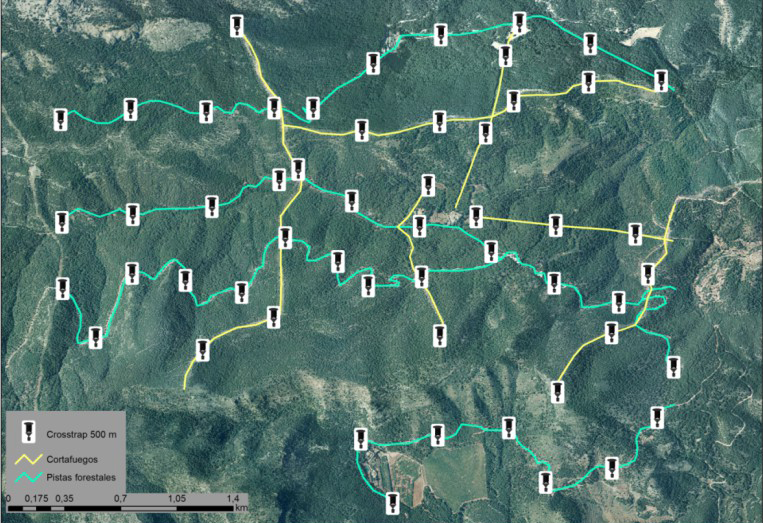

Example of trap installation for the EXHAUSTIVE MONITORING of Tomicus destruens, in a forest area of 1500 hectares, with 35 traps installed along forest trails and firebreaks and with a distance between traps of 500 m.
In parks, gardens and residential areas
Managing Tomicus in parks and gardens presents some peculiarities that differentiate it from controlling this pest in forest environments. The biggest risk of attack on ornamental trees is caused by mechanical damage. Attacks due to the destruction of roots that are more or less severe are very common. They are produced through excavation work surrounding the trees. In general, ornamental trees are not very susceptible to attacks by Tomicus, provided that they are maintained in the same conditions in which they grew in. Sometimes, putting in or removing irrigation systems in parks and gardens can provoke attacks from these insects.
Controlling Tomicus in these circumstances should be very effective, as the aim is to reduce tree mortality to zero. Therefore, the effort to trap these insects must be intensified as much as possible, so that 3 CROSSTRAP® MINI traps per hectare can be used. These traps must be checked weekly.

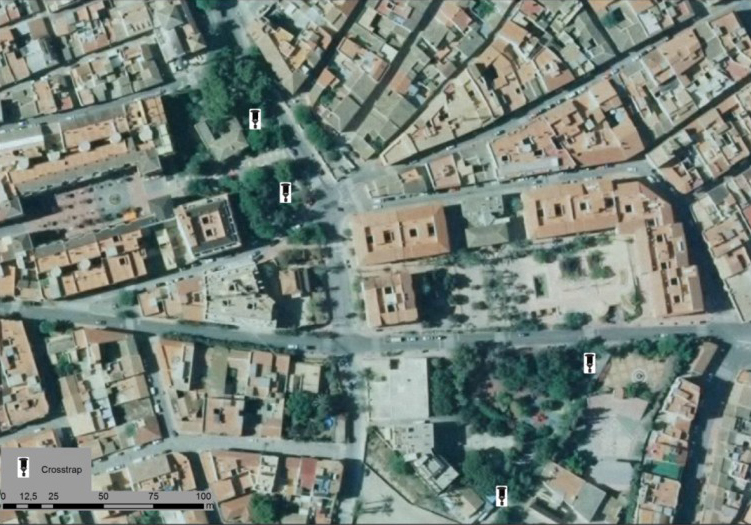

Example of trap placement for the control of Tomicus destruens, in an urban area with public parks containing pine trees (0,8 ha), with 4 traps installed in selected locations.
To attract Tomicus destruens, ECONEX TOMICUS DESTRUENS 60 DAYS 1 UNIT kairomone diffusers must be used, which will be hung on the CROSSTRAP® MINI trap using one of the lateral openings found on one of the sides of the trap.
ECONEX TOMICUS DESTRUENS 60 DAYS 1 UNIT consists of two diffusers of kairomonal attractant designed to attract males and females of Tomicus destruens + 2 clip-style hangers to hang the diffusers on the trap.
The diffusers are in blister pack form, with a 60-day duration in field, and are individually packaged in aluminium sachets with a specification label. Once removed from the packs, the diffusers do not require any activation operation, nor do they need to be opened. They simply need to be properly placed in the trap.

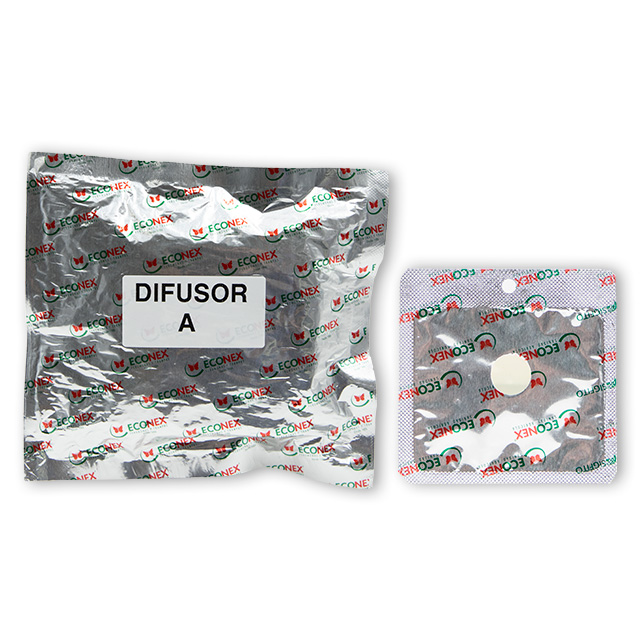

packaging and diffuser A

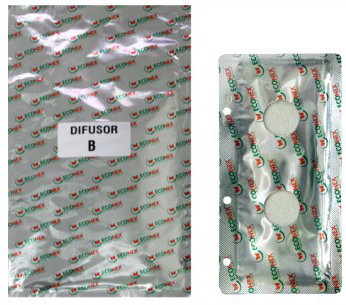

packaging and diffuser B
ECONEX TOMICUS DESTRUENS 60 DAYS 1 UNIT
Sex pheromone diffuser for the biocontrol of Tomicus destruens for the attraction of males and females, with a 60-day duration in the field.
Code: UIPHOVA250
For its correct functioning, it is recommended to use it with the CROSSTRAP® MINI trap, a state-of-the-art trap to catch coleopteran insects during flight. This trap has been developed in an R&D project (University of Murcia - ECONEX) with the aim of developing traps and attractants for forest insects.
These traps consist of a polypropylene lid with a central carabiner attached to a stainless-steel spring and two reinforced PVC sheets anchored at the top to the lid by four stainless steel springs that serve as shock absorbers against strong winds, thus helping to avoid damage to the trap. At the bottom, the reinforced PVC sheets are attached by steel springs to a removable polypropylene funnel with a 30 cm diameter. At the end of the funnel lies the container for holding the captured insects.
The sheets, the funnel and the collector are treated with a slippery product that considerably increases the catches and prevents them from escaping.

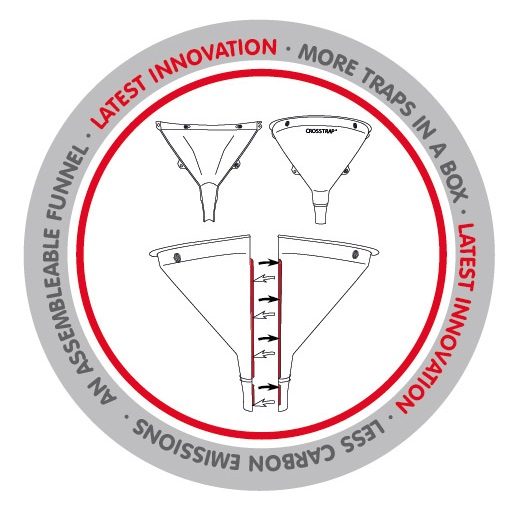

The funnel is made of polypropylene, 30 cm in diameter, and consists of two equal halves that can be easily assembled. The trap can be operational for up to 10 years, due to its high-strength construction and components. The unfolded trap measures 33 cm in diameter by 106 cm in height.
The trap can be used with two types of collector: CROSSTRAP® WET COLLECTION CUP (with slider) 1L for wet catches, and CROSSTRAP® DRY COLLECTION CUP (with slider) for dry use or live catches.
CROSSTRAP® MINI WITH WET COLLECTION CUP (with slider)
Trap for coleopteran insect interception during flight.
Code: UIPFETA226
OMDF register number (Ministry of Agriculture of Spain): 153/2013

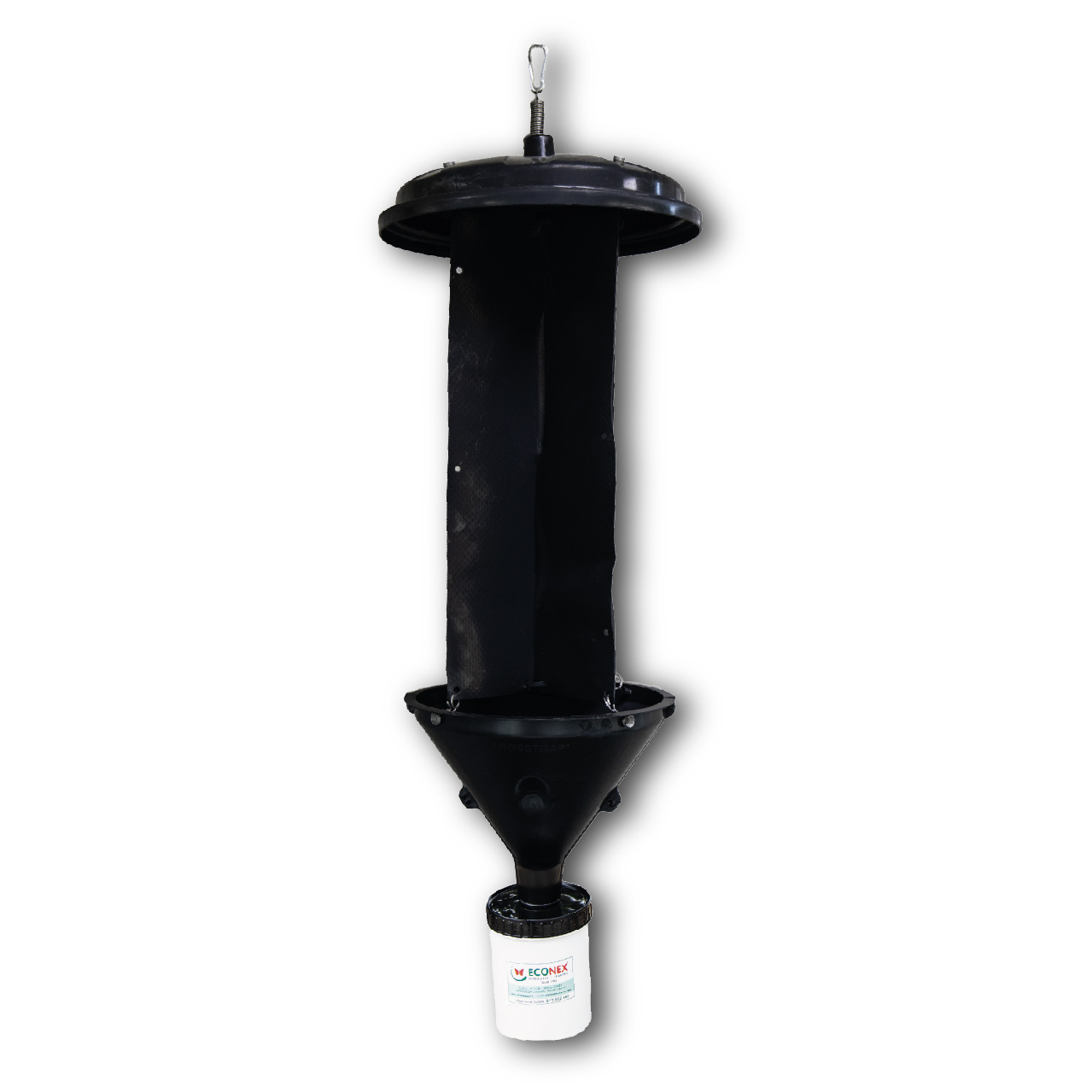

CROSSTRAP® MINI WITH DRY COLLECTION CUP (with slider)
Trap for coleopteran insect interception during flight.
Code: UIPFETA204
OMDF register number (Ministry of Agriculture of Spain): 153/2013
The CROSSTRAP® WET COLLECTION CUP (with slider) 1 L for retaining captured insects is located at the bottom of the funnel. It has a capacity of approximately 1 litre (11 cm diameter x 13.5 cm high).
The CROSSTRAP® DRY COLLECTION CUP (with slider) is designed to hold the captured insects is located at the bottom of the funnel. It has a capacity of approximately 1 litre (11 cm diameter x 13.5 cm high) and is fitted with a stainless-steel mesh at the bottom to allow rainwater to drain away.
Wet catches allow precise identification of the captures. For this purpose, it is recommended to fill the collector with 10 ml of 10 or 20 % diluted propylene glycol or, if necessary, car antifreeze. This liquid serves both as a kill agent and as a preservative, as long as it is not diluted too much by rain, in which case it should be replaced.

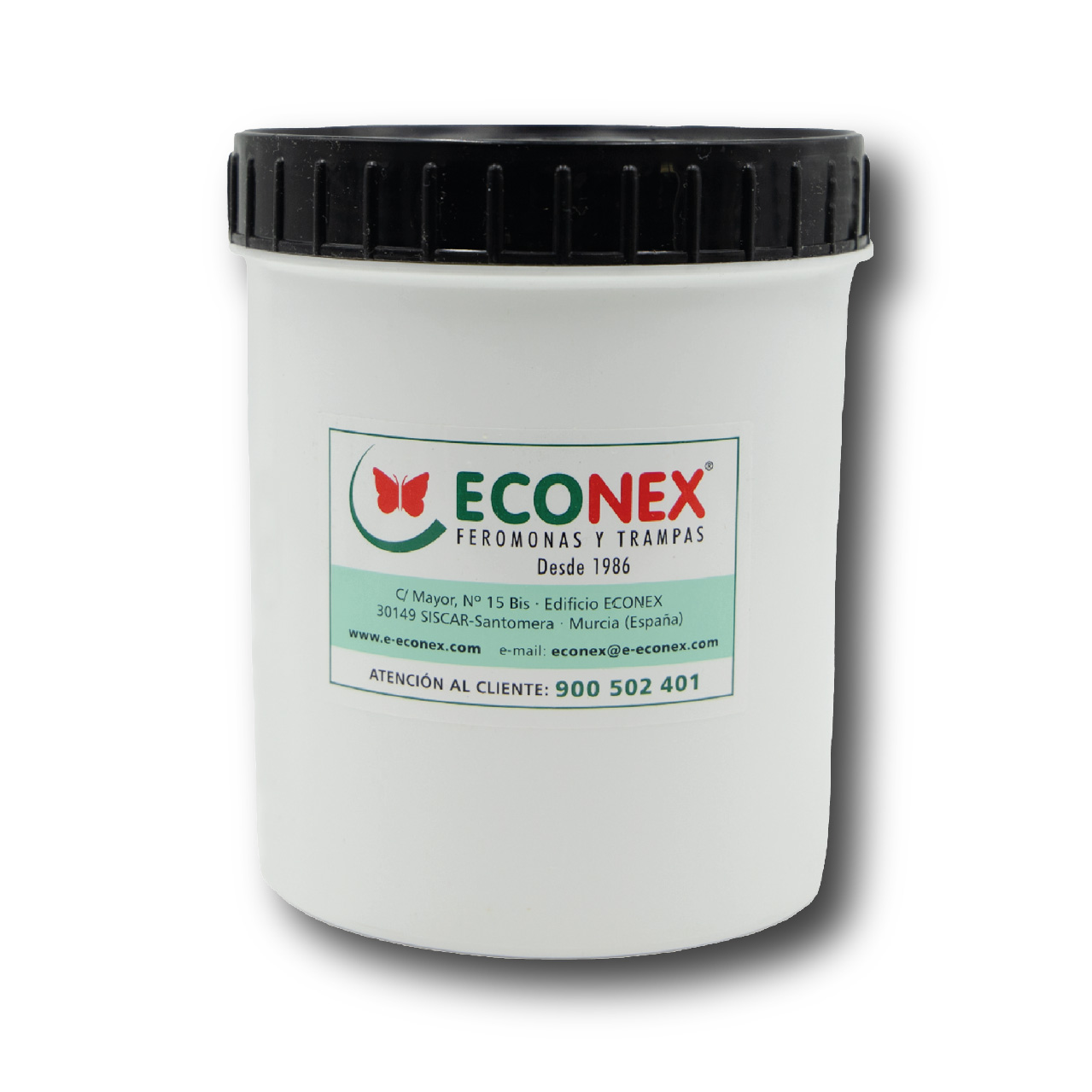

CROSSTRAP® WET COLLECTION CUP (with slider) 1 L
Wet catch collector located at the bottom of CROSSTRAP® traps.
Code: UIPFETA311
CROSSTRAP® DRY COLLECTION CUP (with slider)
Trap collector for dry use, or live traps, located at the bottom of the CROSSTRAP® traps.
Code: UIPFETA157

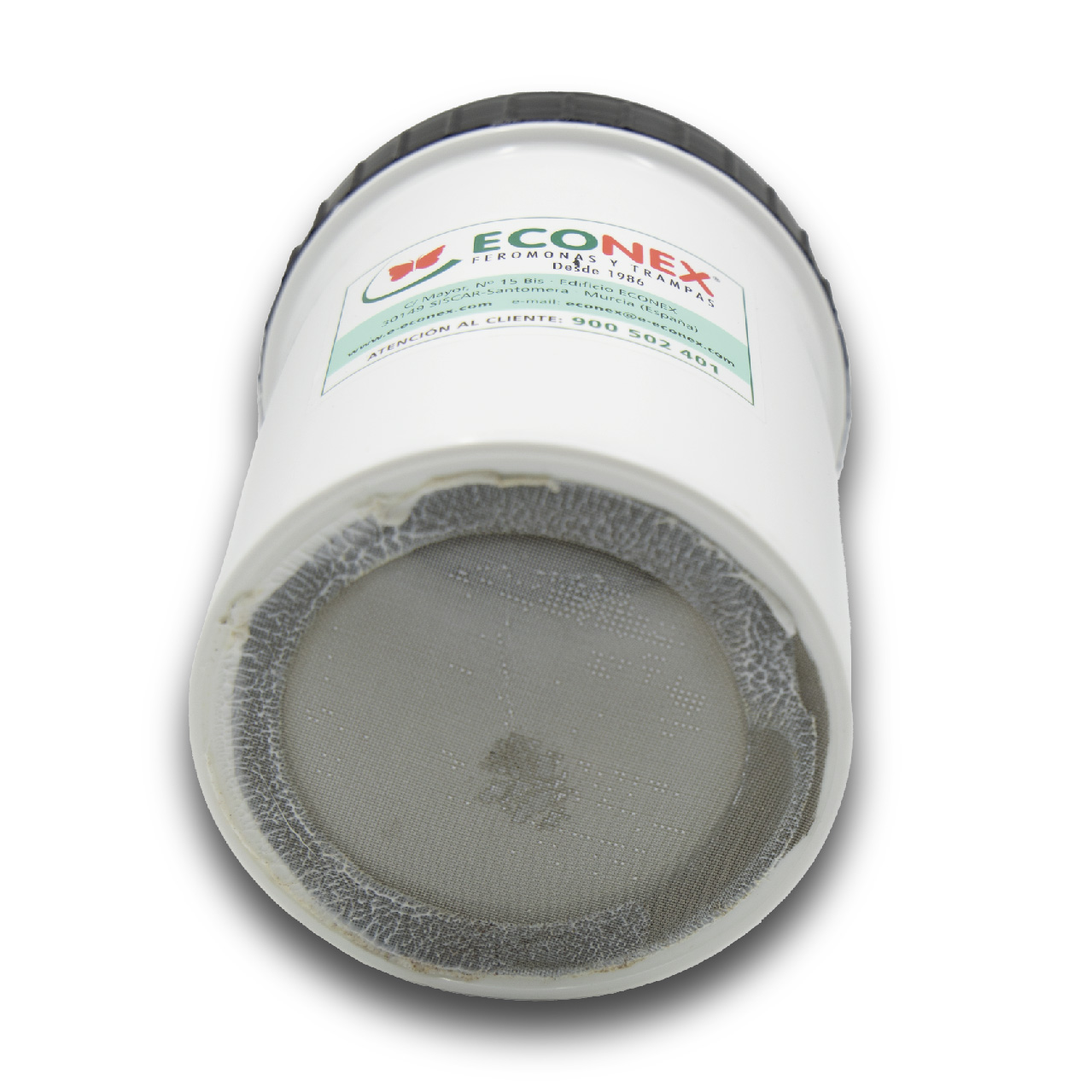

CROSSTRAP® DRY COLLECTION CUP
View from below

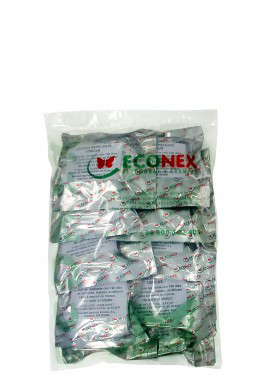

ECONEX TOMICUS REPELLENT 120 DAYS
To improve the biocontrol of these beetles, ECONEX has ECONEX TOMICUS REPELLENT 120 DAYS. Its use is recommended for the protection of individual pines at risk in parks, gardens or domestic outdoor gardening, as well as singular and preserved pines.

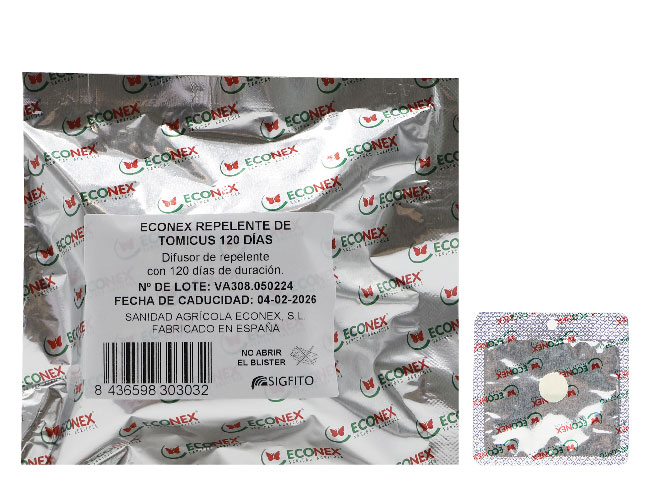

ECONEX TOMICUS REPELLENT 120 DAYS
Tomicus repellent diffuser with a duration of 120 days.
Code: UIPHOVA308
The repellent should always be used under the ‘push and pull’ strategy, using repellents and traps baited with attractants together, in such a way that the repellent pushes the Tomicus away from the pine trees, and they are attracted to the traps.
A repellent diffuser should be placed every 4 m linearly from the trunk, up to the appearance of thin bark. Diffusers should be installed by nailing them to knots or other areas of dead pine wood.

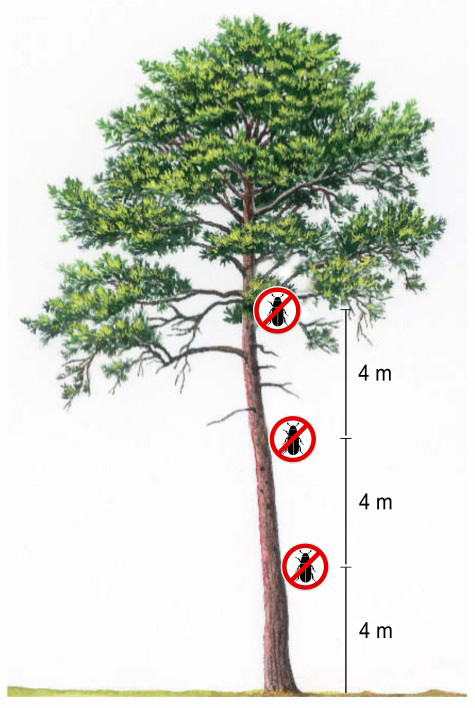

Diagram of ECONEX TOMICUS REPELLENT 120 DAYS diffusers being installed and protecting a tree about 20 m high.

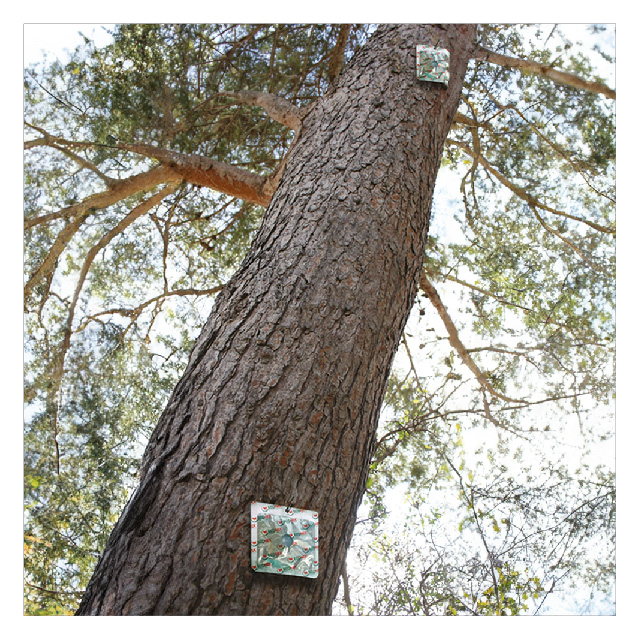

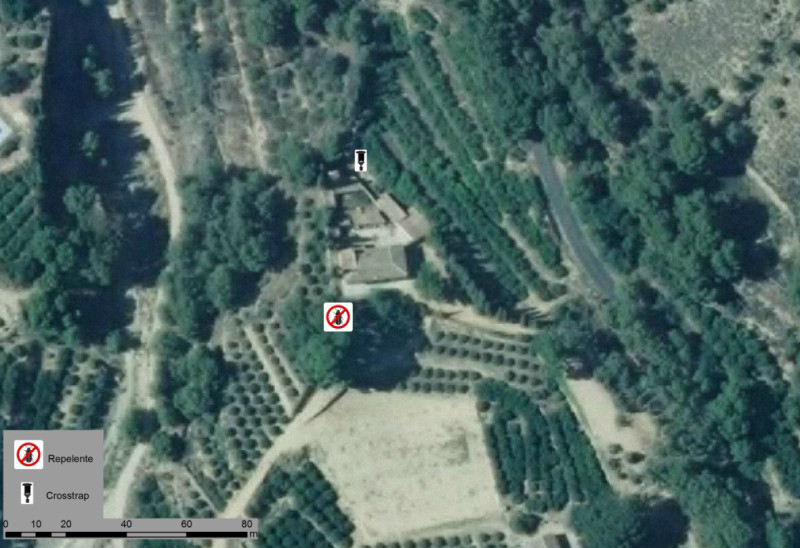

Example of installing repellents and traps to protect individual trees against Tomicus destruens in gardens. The distance between the trap and the tree with repellents is 50 m.
In forests, the number of traps is determined by the area to be covered and by the network of roads, firebreaks or accessible forest edges. For exhaustive monitoring, trap densities of between 0,1 and 0,3 CROSSTRAP® MINI traps per hectare is recommended, separated between 100 and 500 linear metres, for which we recommend the use of a GPS during installation.
In parks, gardens, recreational areas, domestic outdoor gardening or small forest areas ( <5 ha ), trap densities can be greatly increased up to 3 CROSSTRAP® MINI traps per hectare.
In these locations, the death of just one tree is shocking enough to intensify trapping, so that as many insects as possible are captured.
The diffusers must be stored in their original packaging in a cool and dry place and separated from food and drinks.
ECONEX TOMICUS DESTRUENS diffusers 60 DAYS SHIPPING. 1 pc. It must be kept in its container and in the refrigerator at 4ºC or in the freezer at 18ºC, in which case they will remain valid for 90 and 150 days respectively.
ECONEX TOMICUS REPELLENT 120 DAYS must be stored in the refrigerator at 4ºC or in the freezer at 18ºC, in which case they will remain valid for 2 and 4 years respectively.

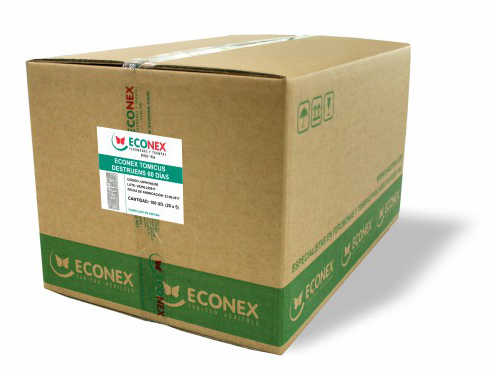

ECONEX TOMICUS DESTRUENS 60 DAYS
Corrugated cardboard box of 100 units.
Box size: 0.60 x 0.40 x 0.35 m (length x width x height).
Box weight: 23.5 kg.
No. of boxes per pallet: 20
Pallet size: 1.20 x 0.80 x 1.95 m (length x width x height).
Pallet weight: 477 kg.

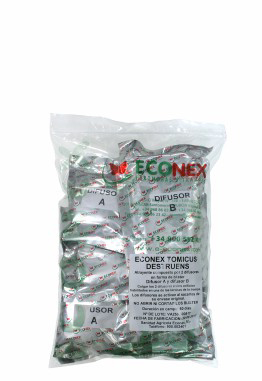

Pack of 5 units
Box of 100 units
(20 packs x 5 units)

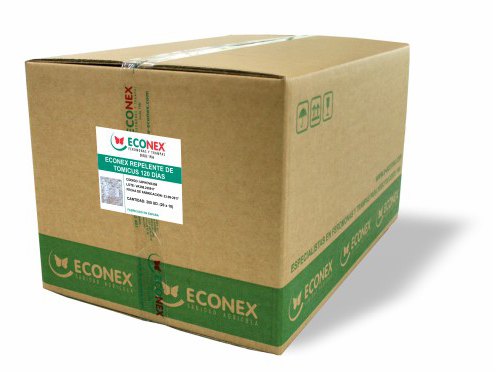

ECONEX TOMICUS REPELLENT 120 DAYS
Corrugated cardboard box of 200 units.
Box size: 0.60 x 0.40 x 0.35 m (length x width x height).
Box weight: 17.5 kg.
No. of boxes per pallet: 20
Pallet size: 1.20 x 0.80 x 1.95 m (length x width x height).
Pallet weight: 357 kg.
Pack of 10 units
Box of 200 units.
(20 packs x 10 units)
CROSSTRAP® MINI WITH WET COLLECTION CUP (with slider)
Corrugated cardboard box of 8 units.
Box size: 0.60 x 0.80 x 0.48 m (length x width x height).
Box weight: 11.30 kg.
No. of boxes per pallet: 8
Pallet size: 1.20 x 0.80 x 2.05 m (length x width x height).
Pallet weight: 100 kg.
Box of 8 units.
CROSSTRAP® MINI WITH DRY COLLECTION CUP (with slider)

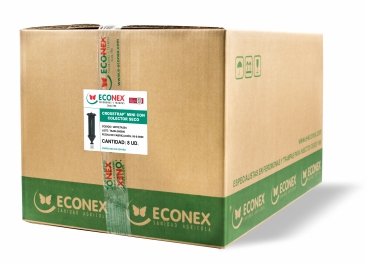

Corrugated cardboard box of 8 units.
Box size: 0.60 x 0.80 x 0.48 m (length x width x height).
Box weight: 11.30 kg.
No. of boxes per pallet: 8
Pallet size: 1.20 x 0.80 x 2.05 m (length x width x height).
Pallet weight: 100 kg.
Box of 8 units.
